Using n8n with LangBot

n8n is an open-source workflow automation platform that allows you to create, schedule, and execute various automated tasks.

LangBot currently supports triggering workflows and receiving responses through the Webhook node in n8n workflows.

Configuring n8n Workflow Connection

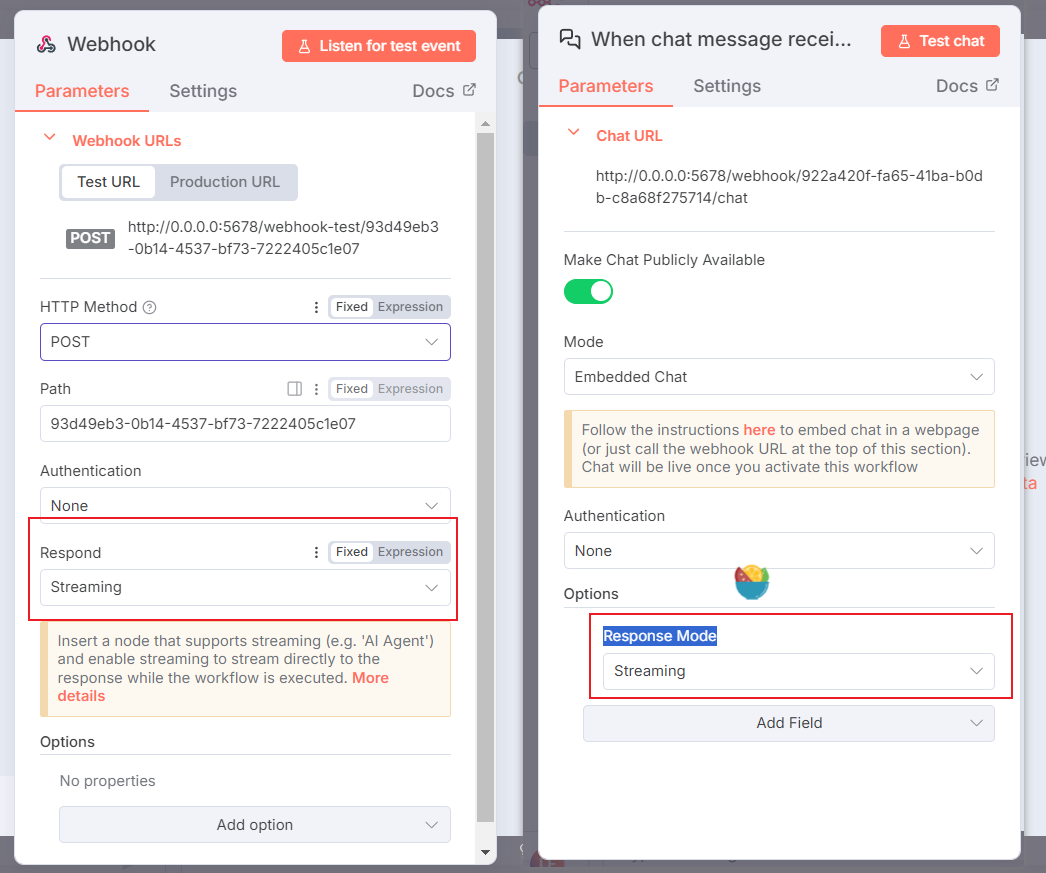

You need to select Webhook as the trigger and configure it according to the image below:

INFO

Authentication corresponds to the authentication methods in LangBot's pipeline configuration, which you can modify as needed.

For the workflow response content in n8n, please use the Respond to Webhook node and configure it according to the image below:

The response content key name in Response Body needs to match the output key name in LangBot's pipeline configuration.

After completing the n8n workflow configuration, please click Active at the top to enable the workflow.
